EBRPIH1118-RK3A

Description

Overview

Welcome to the future of IoT and automation solutions! Combining the robust Radxa Rock3A single-board computer with the versatile EBRPIH1118 baseboard, enclosed in a durable metal-made enclosure, this integrated product caters to diverse automation and monitoring needs across various applications. Whether you’re managing home automation, monitoring environmental conditions, optimizing energy consumption, or controlling industrial equipment, this combination offers powerful performance and exceptional reliability.

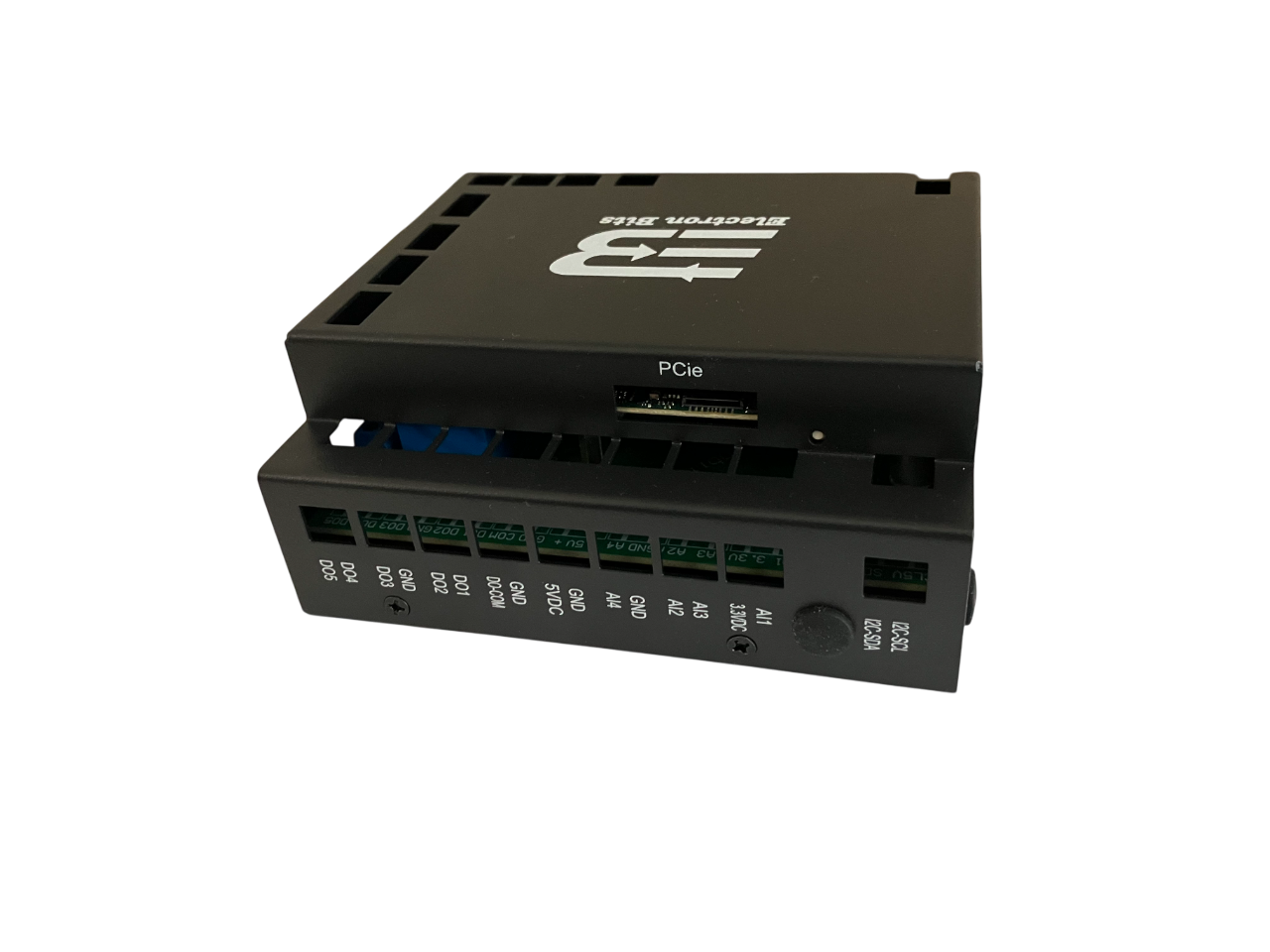

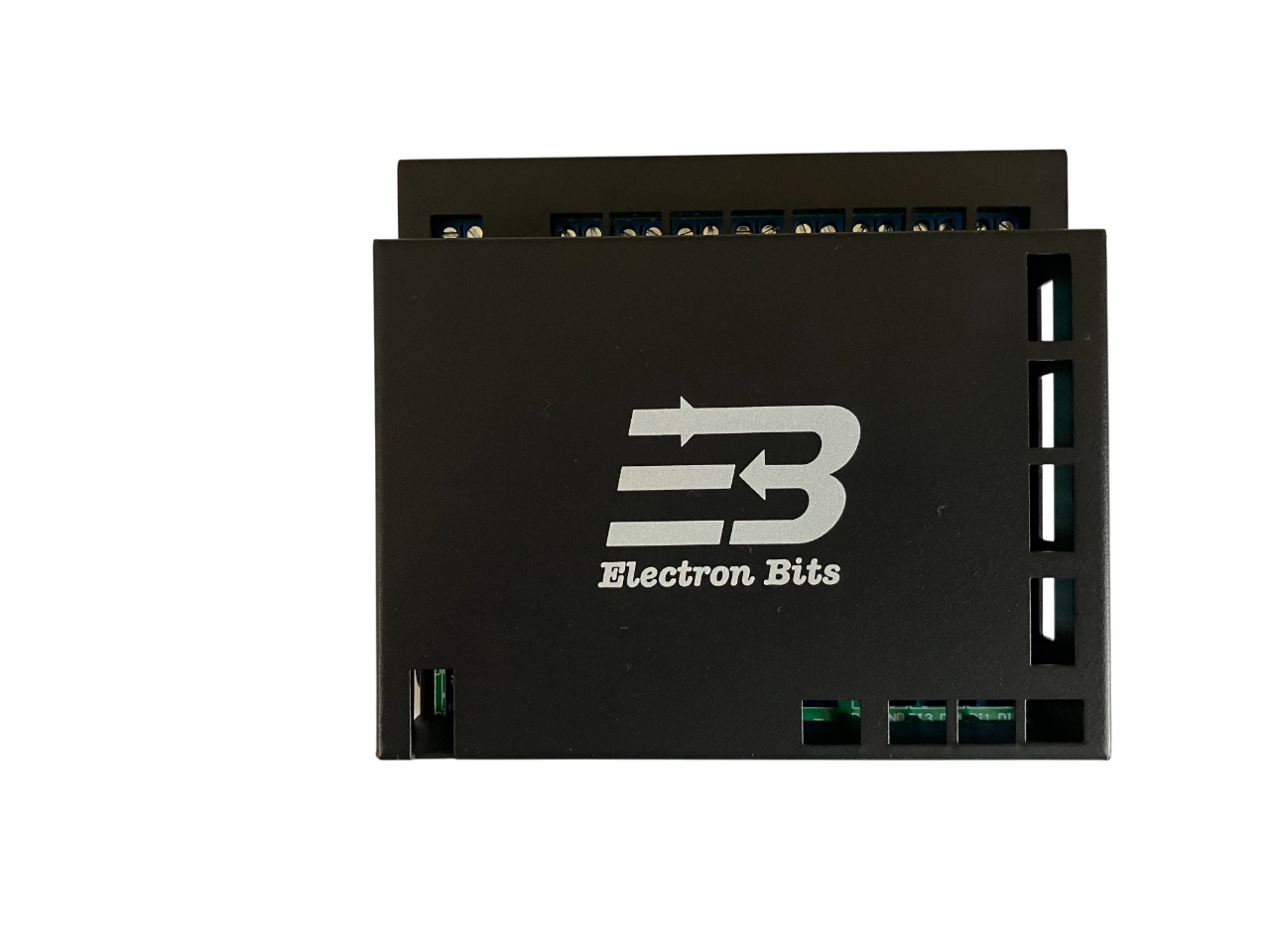

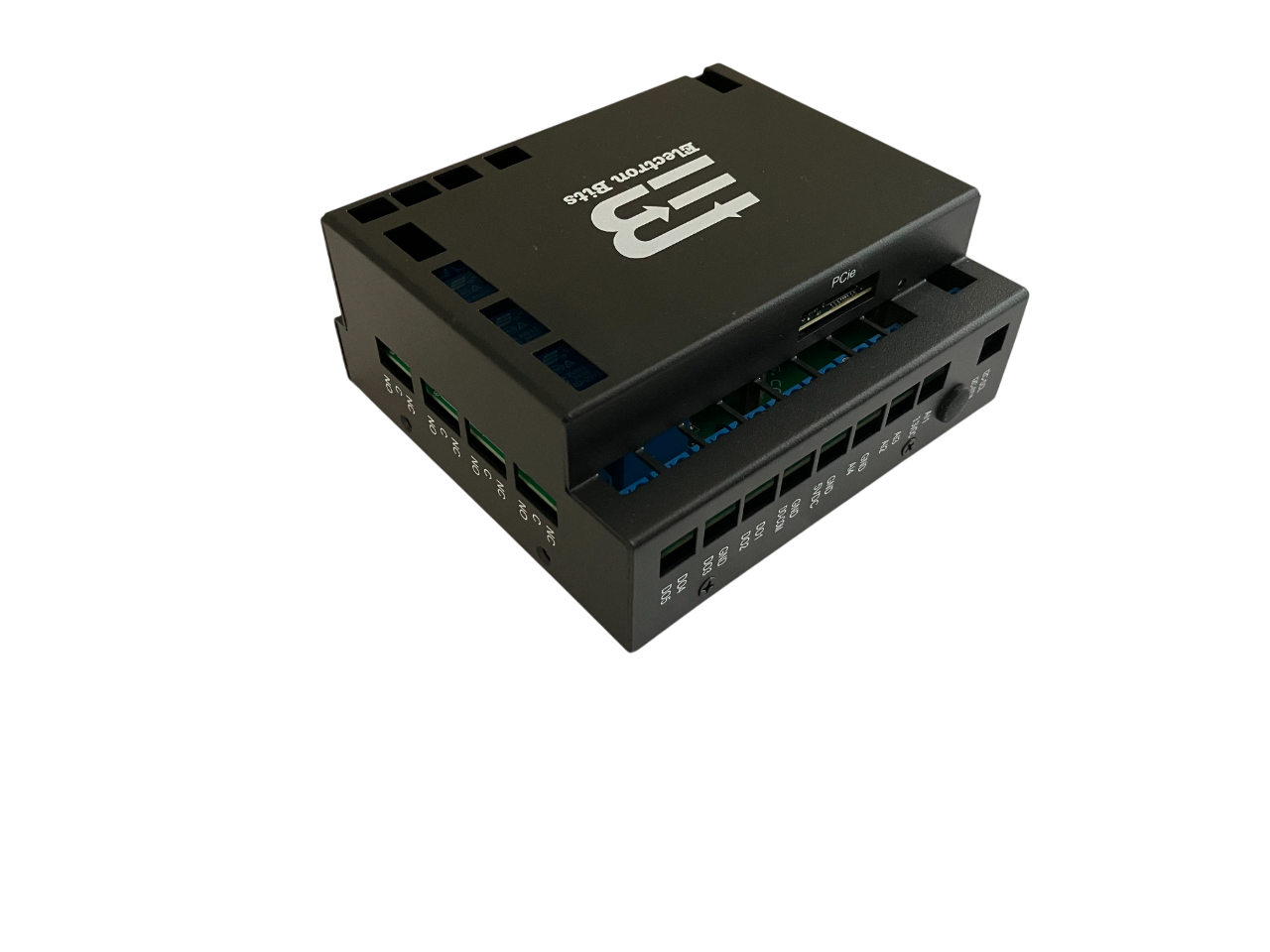

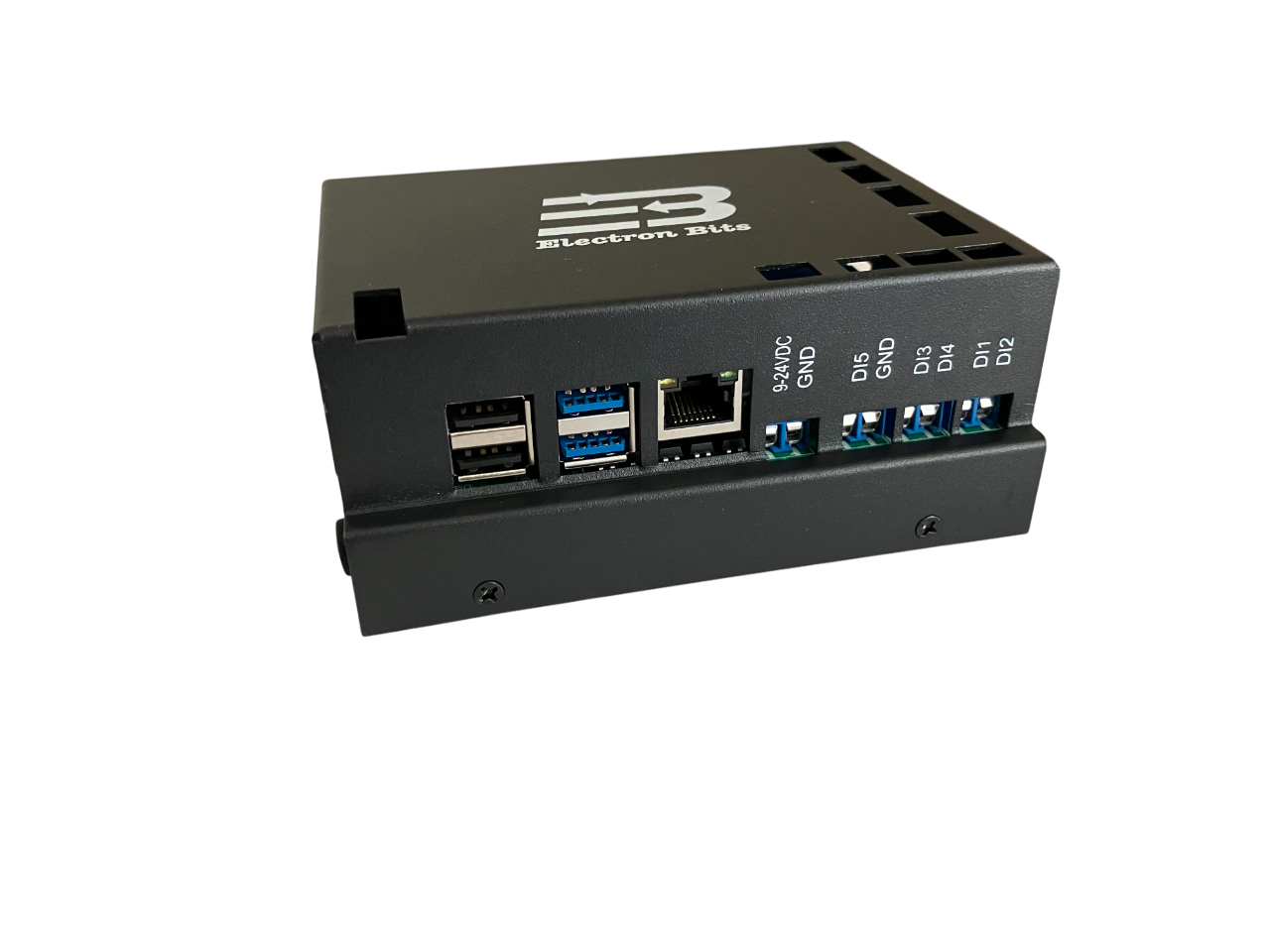

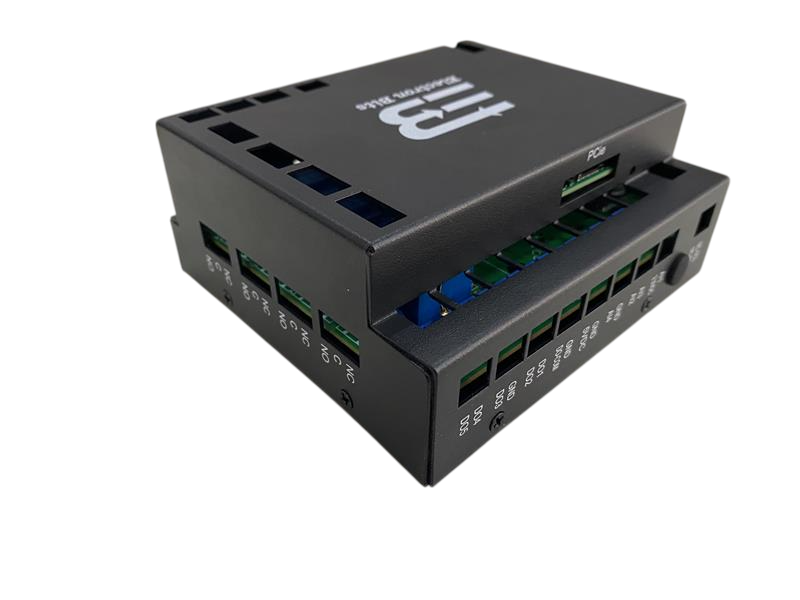

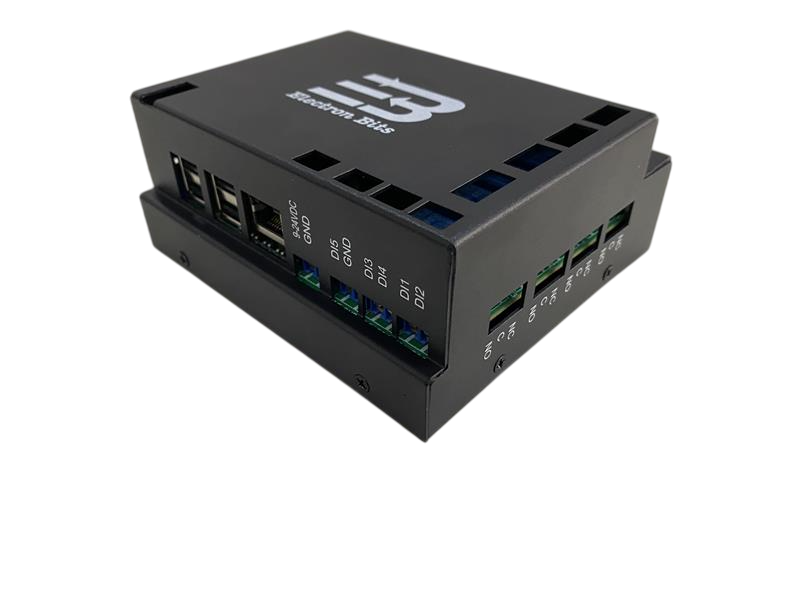

Metal-Made Enclosure

The metal-made enclosure provides:

• Enhanced durability and protection against physical damage.
• Effective heat dissipation for optimal thermal management.
• Increased electromagnetic interference (EMI) shielding.
• Improved longevity in harsh or industrial environments.
• Sleek and professional aesthetic suitable for commercial and industrial installations.

Applications

This integrated solution is ideal for:

• Home Automation: Control lighting, appliances, security systems, and HVAC setups effortlessly.
• Industrial Automation: Manage equipment, machinery monitoring, and automated control processes in real-time.
• Environmental Monitoring: Track temperature, humidity, air quality, and other environmental parameters with precision.
• Energy Management: Optimize energy distribution and monitor renewable energy sources effectively.
• Smart Agriculture: Enhance farming operations through precise monitoring and automated control of irrigation, feeding, and climate systems.
• Remote Data Acquisition: Ideal for collecting data from sensors deployed in remote or difficult-to-access locations.
• Security and Access Control: Integrate robust security measures with sensors and control mechanisms.
• Educational and DIY Projects: Perfect for educational purposes and hobbyist endeavors in electronics and programming.



Features

Radxa Rock3A Features:

• Rockchip RK3568 ARM Quad-Core Cortex-A55, up to 2.0 GHz
• 2GB LPDDR4 RAM
• eMMC socket, microSD slot, and M.2 NVMe SSD support
• Gigabit Ethernet
• USB 3.0, and USB 2.0
• PCIe interface
• GPIO, I2C, SPI, UART interfaces
• Compatible with Linux-based OS (Armbian, Ubuntu, Debian)

EBRPIH1118 Base Board Features:

• 4 Buffered Digital Outputs (500mA each)
• 3 Buffered Digital Inputs (500mA each)
• 4 Power Relays (10A at 250VAC/30VDC)
• 4 Analog Inputs (4-28VDC)

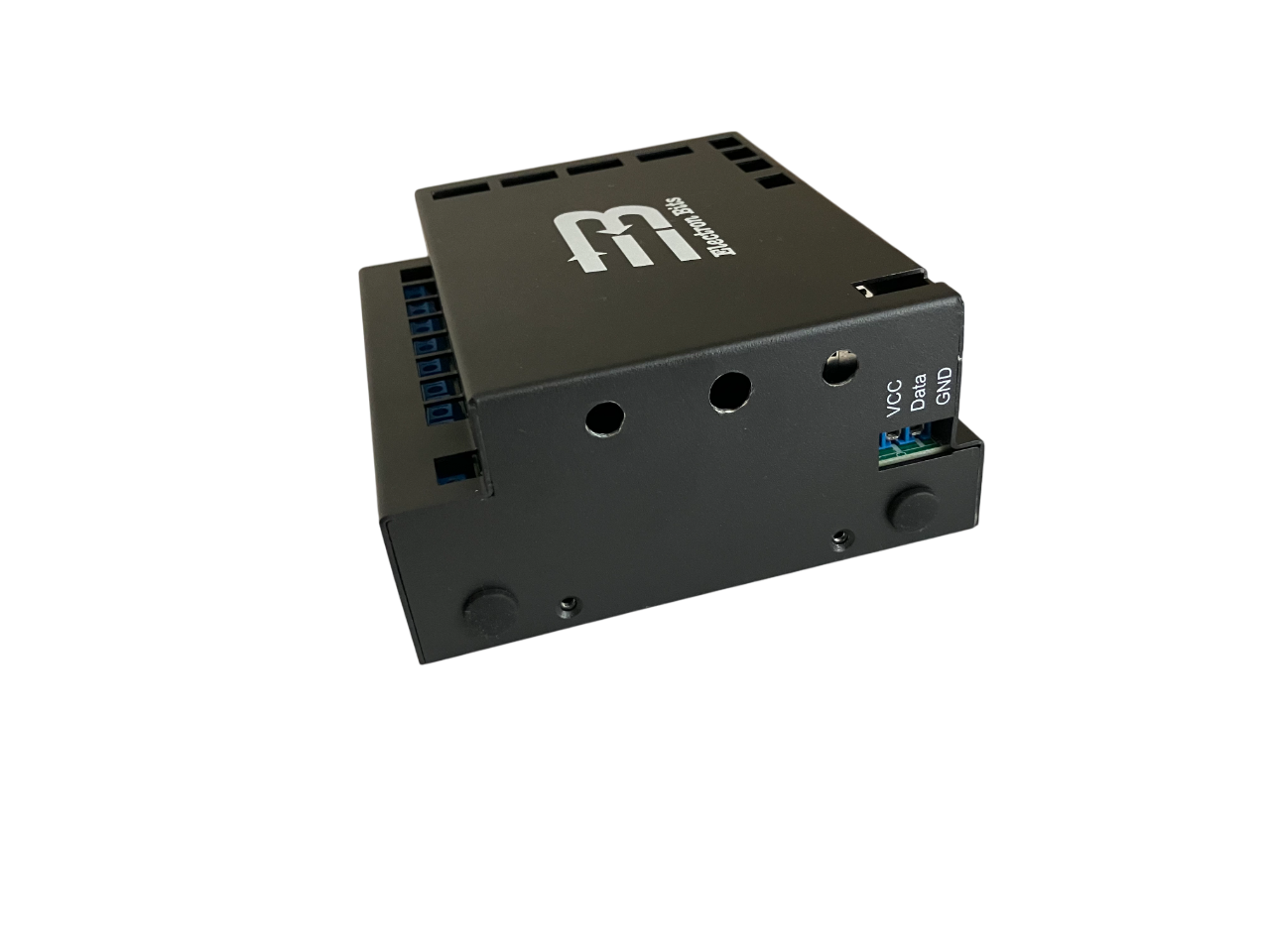

• Dedicated 1-Wire Sensor Interface (compatible with DS18B20)
• I2C Output with 5V level shifter
• LED indicators for power and operational status
• Reverse voltage protection (9-24V DC input)
• Compact dimensions: 120mm x 108mm

Combined Capabilities:

• Robust Automation and Control (Home, Industrial, Agricultural)
• Comprehensive Environmental and Energy Monitoring
• Precise Real-time Data Acquisition
• Wide Sensor Compatibility (Digital, Analog, 1-Wire)
• Simple Integration with Python API and Intuitive Web Interface
• Optimized for Linux-based embedded systems
• Engineered for Reliability and Performance in Critical Applications

You can now find a zip file containing device tree overlays for various peripherals, including I2C, SPI, and W1, available for download. Please note that these overlays have been tested on Armbian. They will allow you to easily enable and configure these interfaces on your Armbian system.
