EBRPIH1118 – V2

CA$169.00

Designed for SBCs with Raspberry Pi–compatible pinouts, this board empowers you to build almost anything. It combines a rich set of features—including analog and digital inputs, power outputs, TWI (I²C), and more—into a single, versatile solution.

ORDER MORE THAN 100? get volume quote by contacting us.



Lead Time: contact us

5 in stock (can be backordered)

Category: Tags: , , , , , , , ,

Description

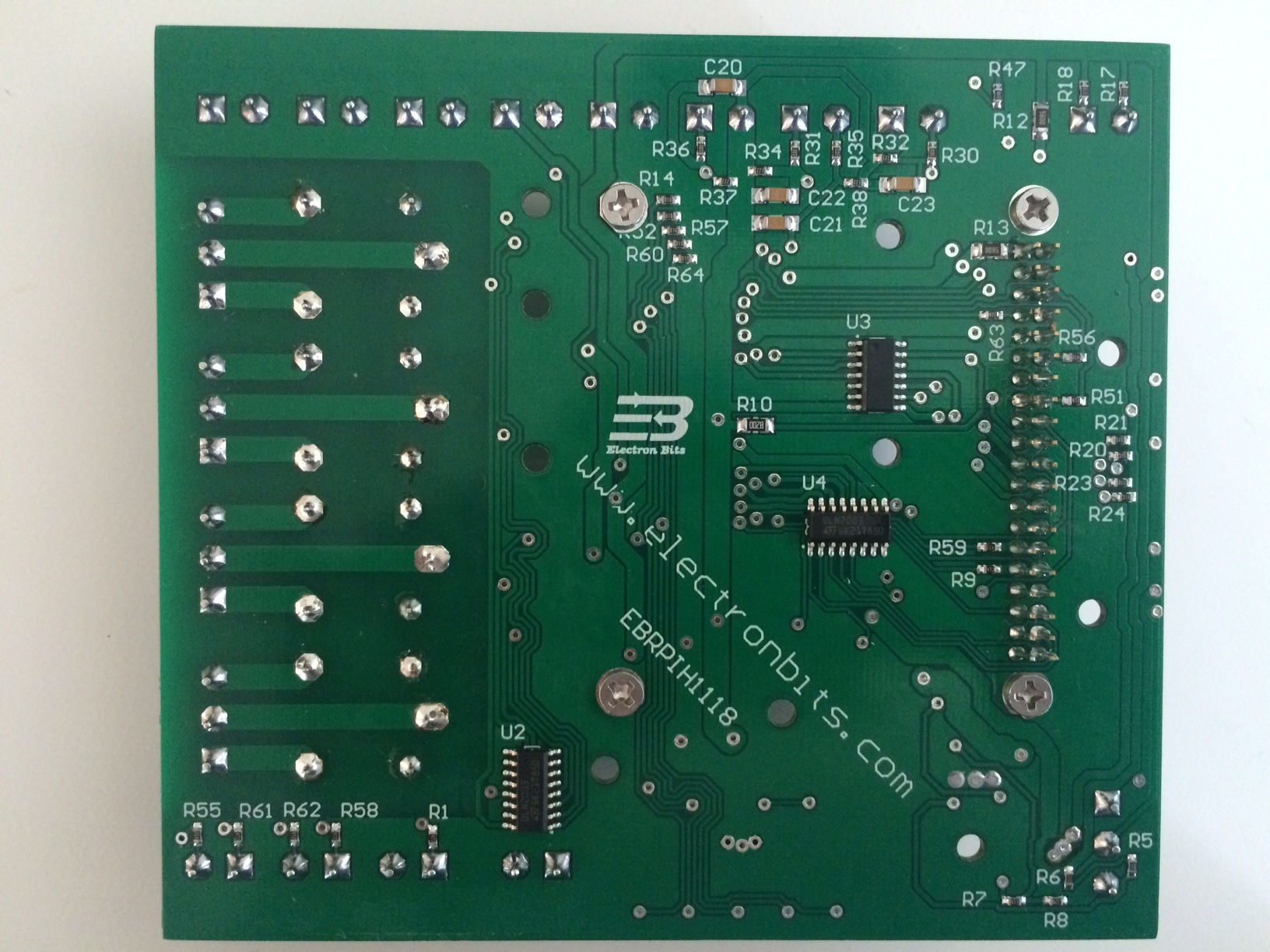

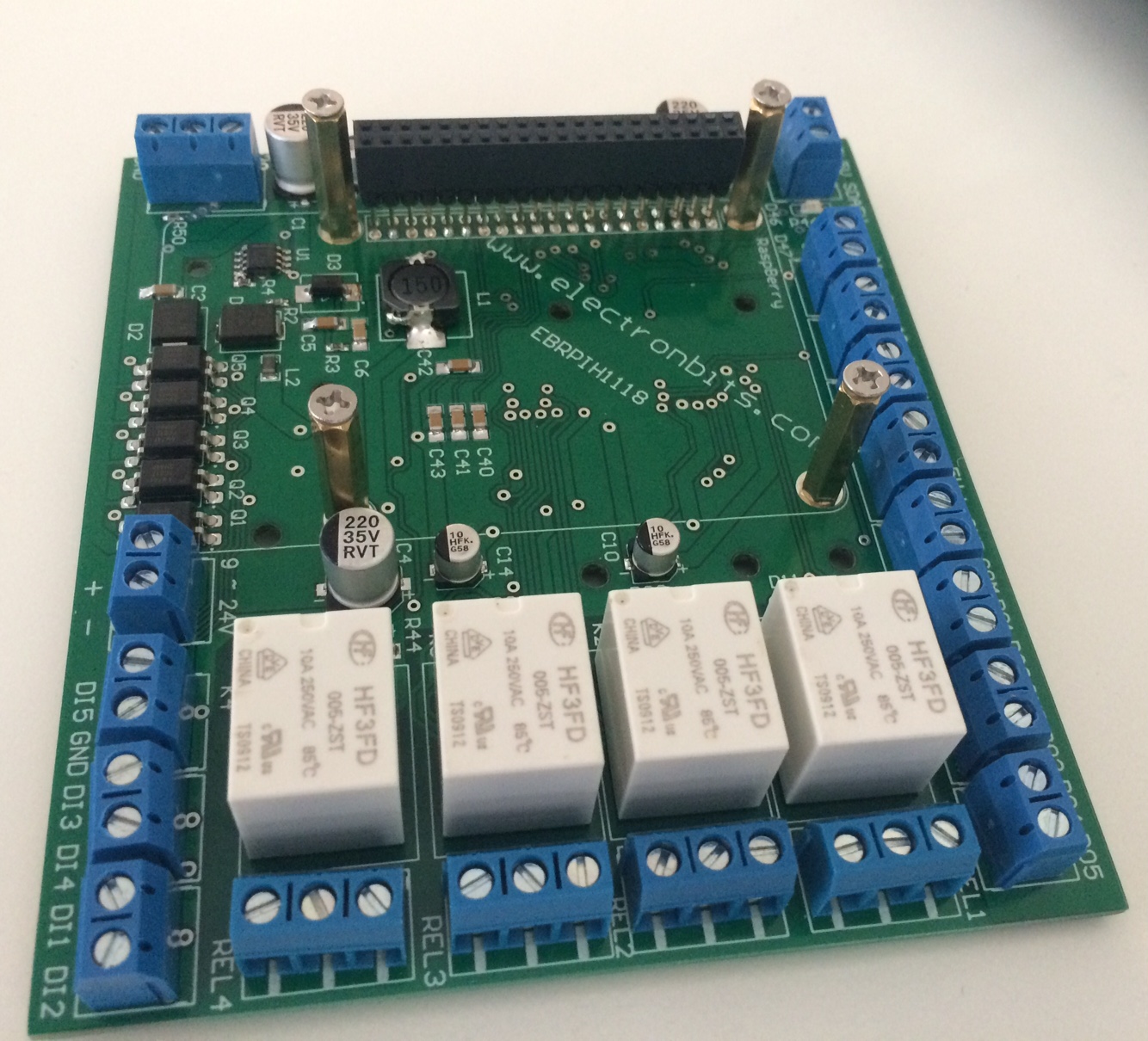

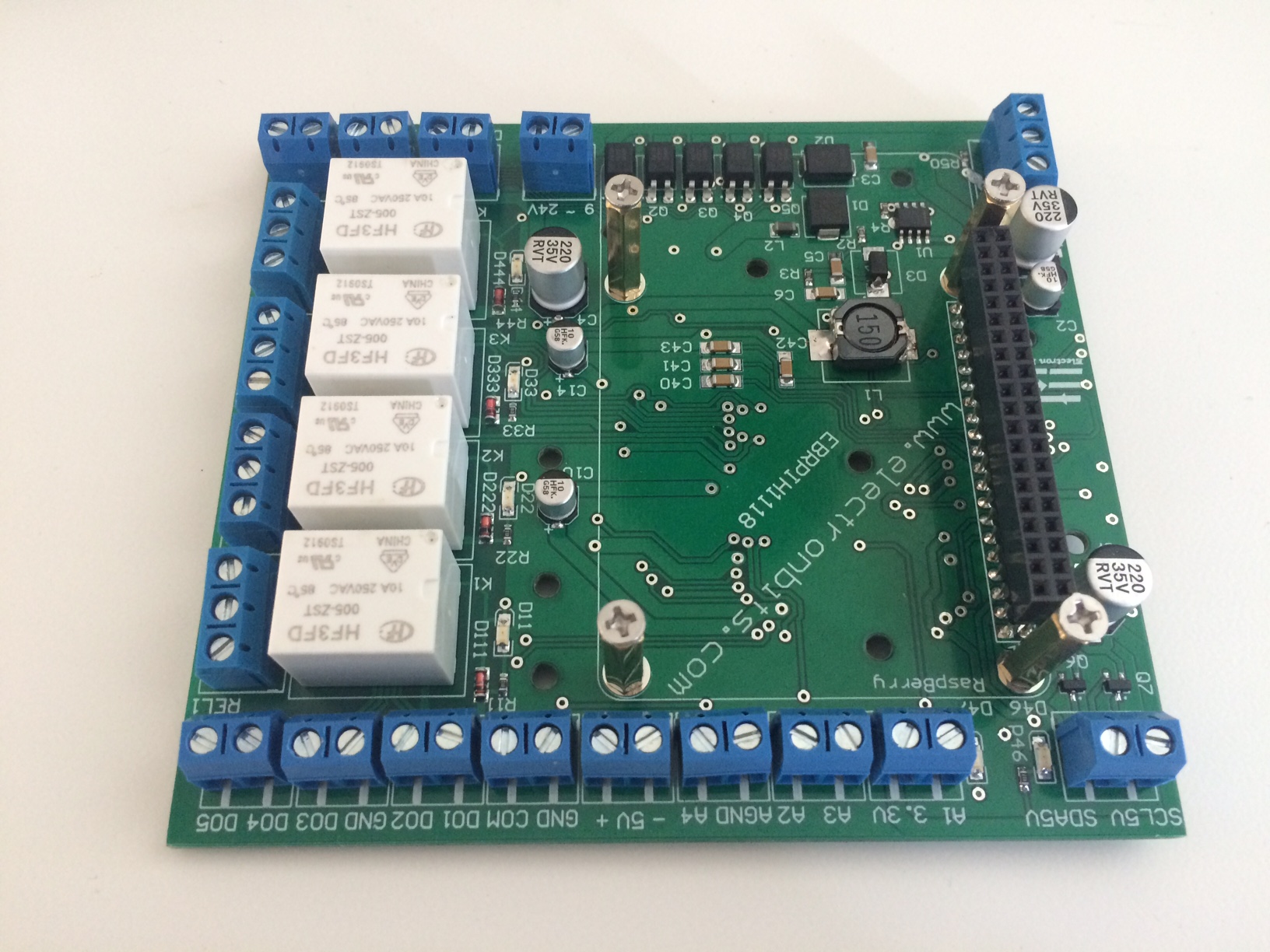

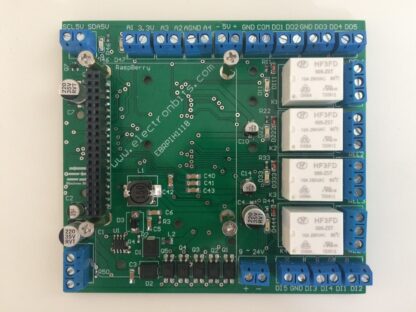

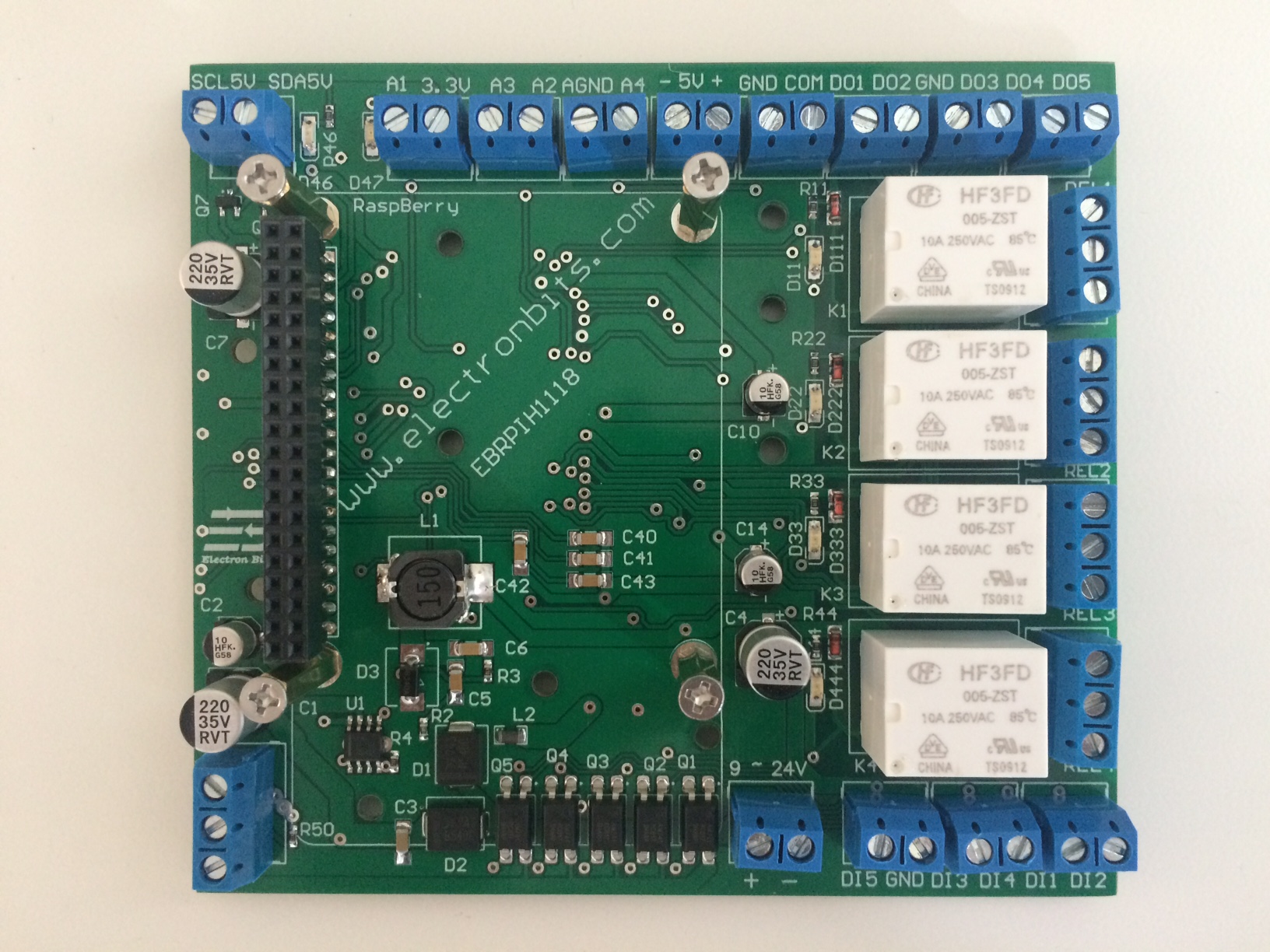

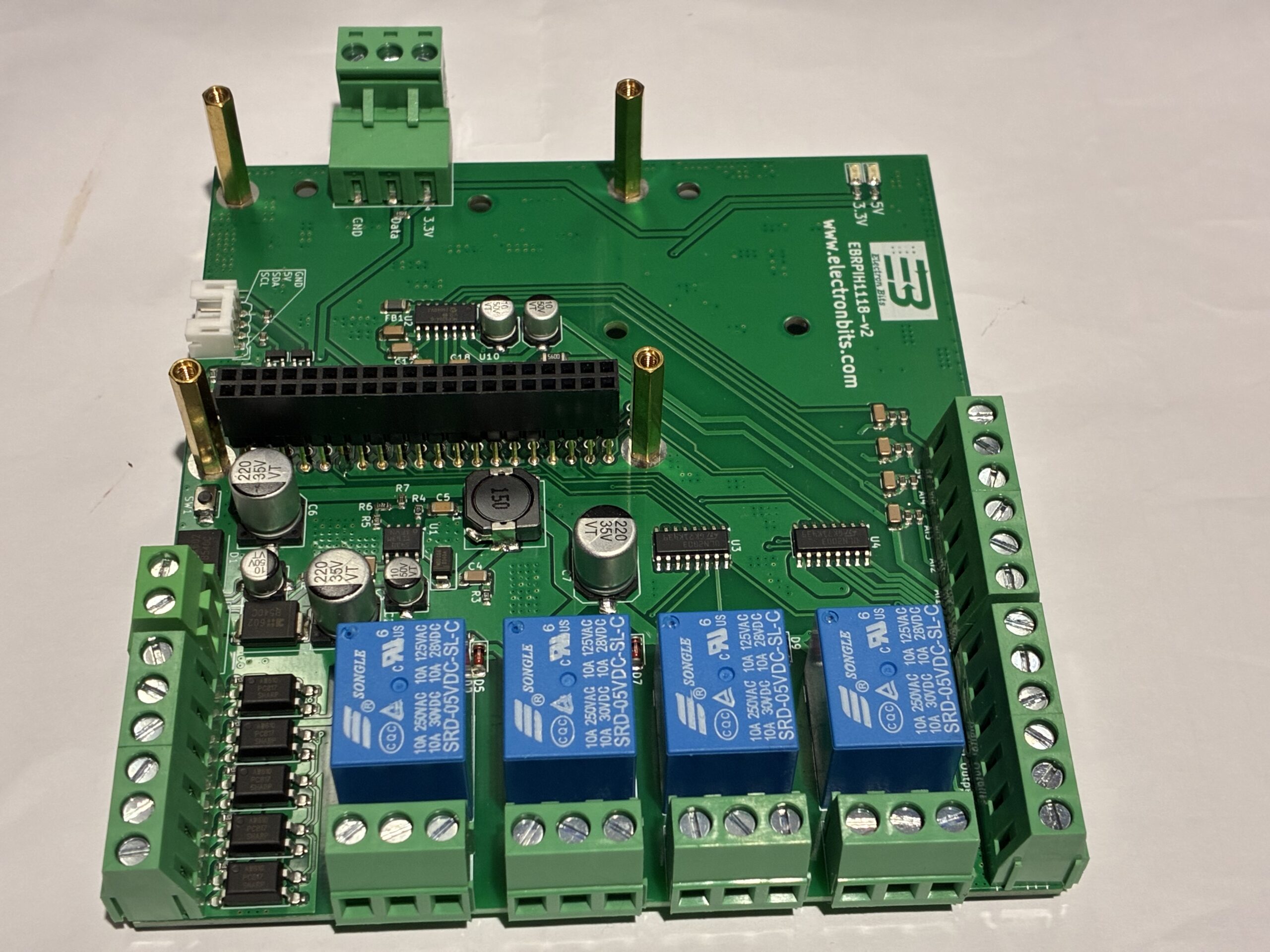

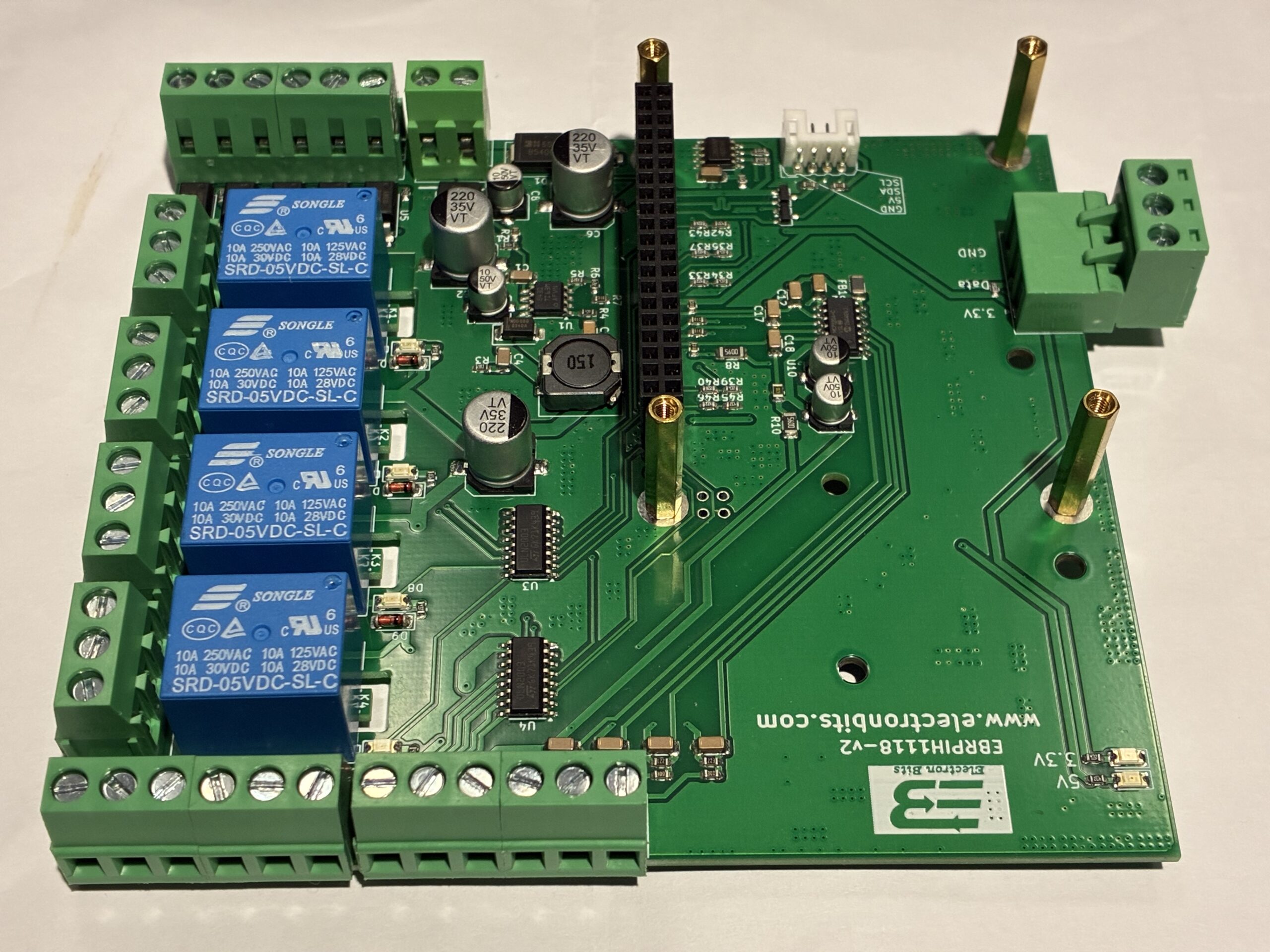

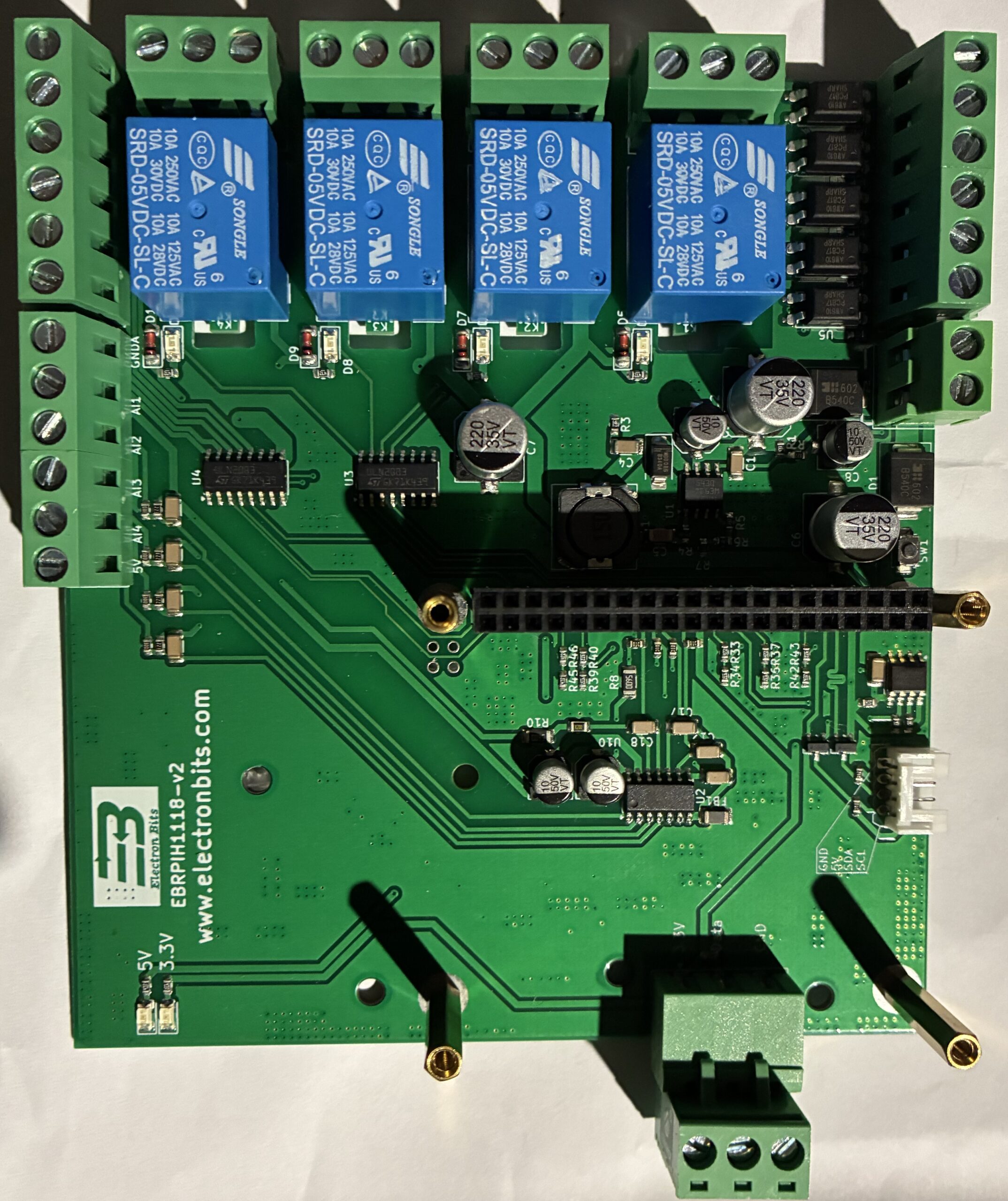

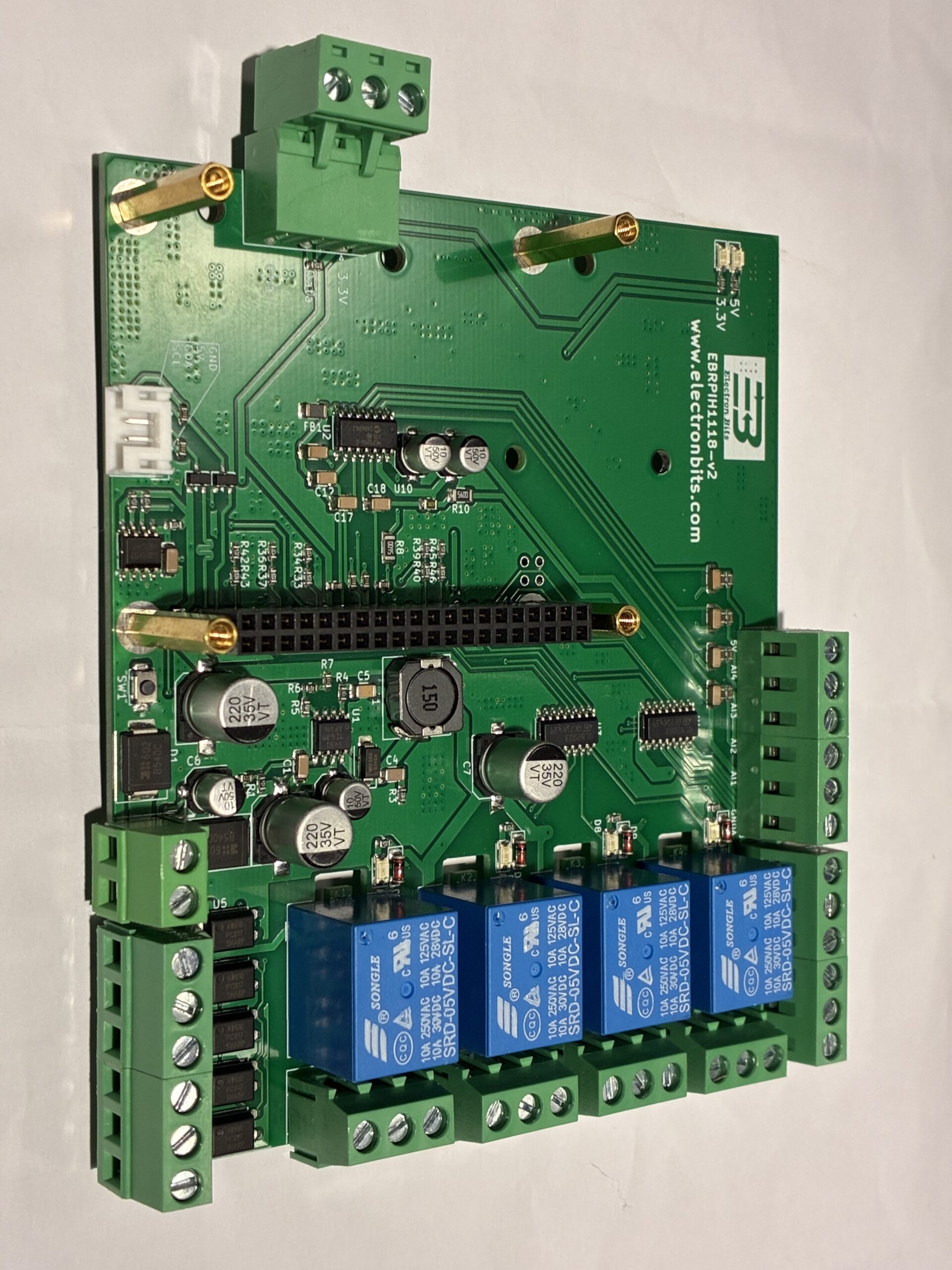

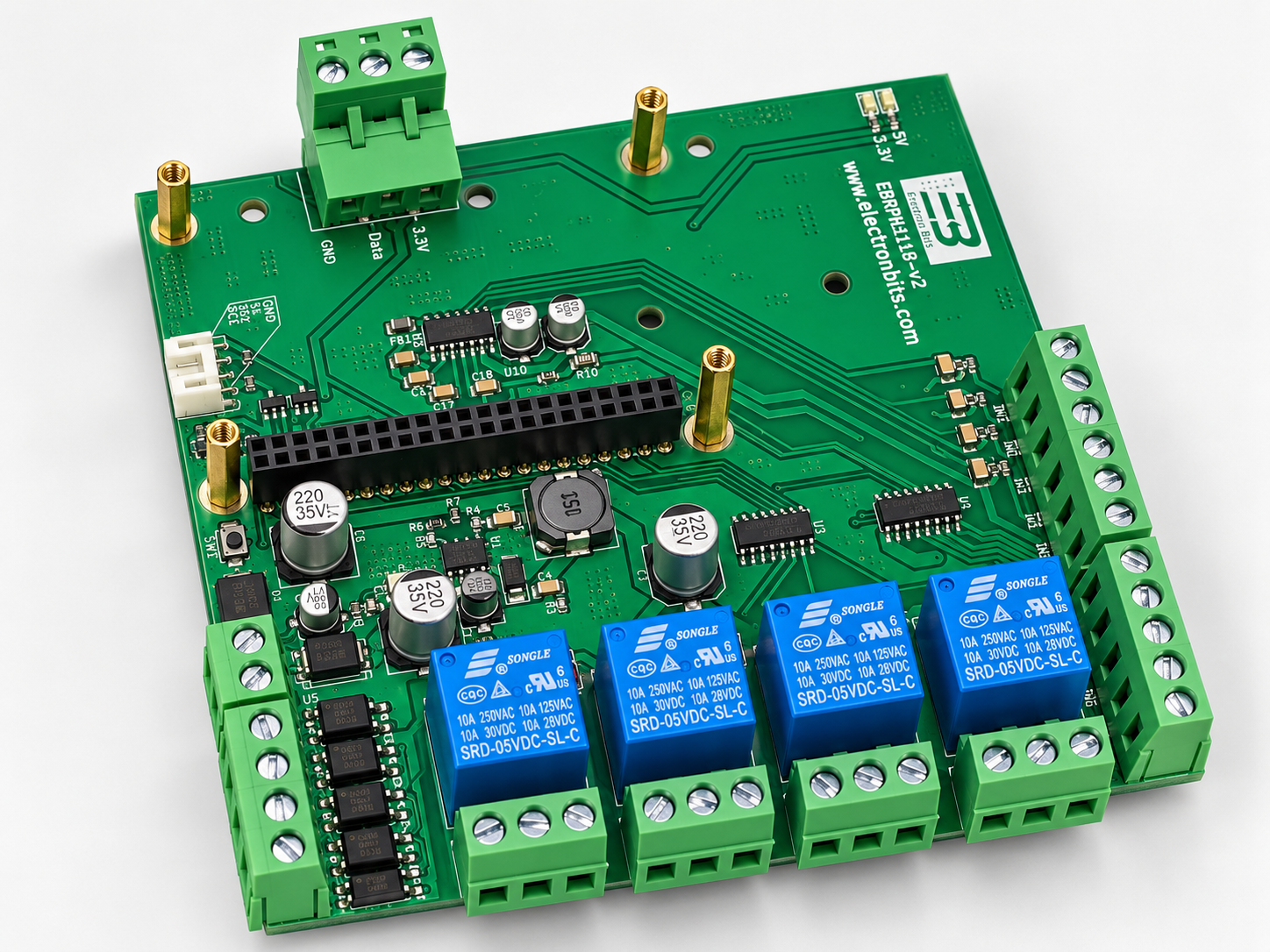

SBC-compatible base board

  • Reset Button
  • 5 buffered  Digital output – Powered by ULN2003 and can handle 500mA based on its datasheet
  • 5 Digital Input to detect Ground/Float state
  • 4 output power Relay – 10A 250VAC/30VDC
  • 4 Input Analog 0-28VDC
  • I2C output with built-in level shifter to 5V
  • Pluggable Deticated 1-Wire interface, fully compatible with ds18b20  temperature sensor
  • LED indicators for 3.3VDC and 5VDC
  • Power Input: 9-24VDC

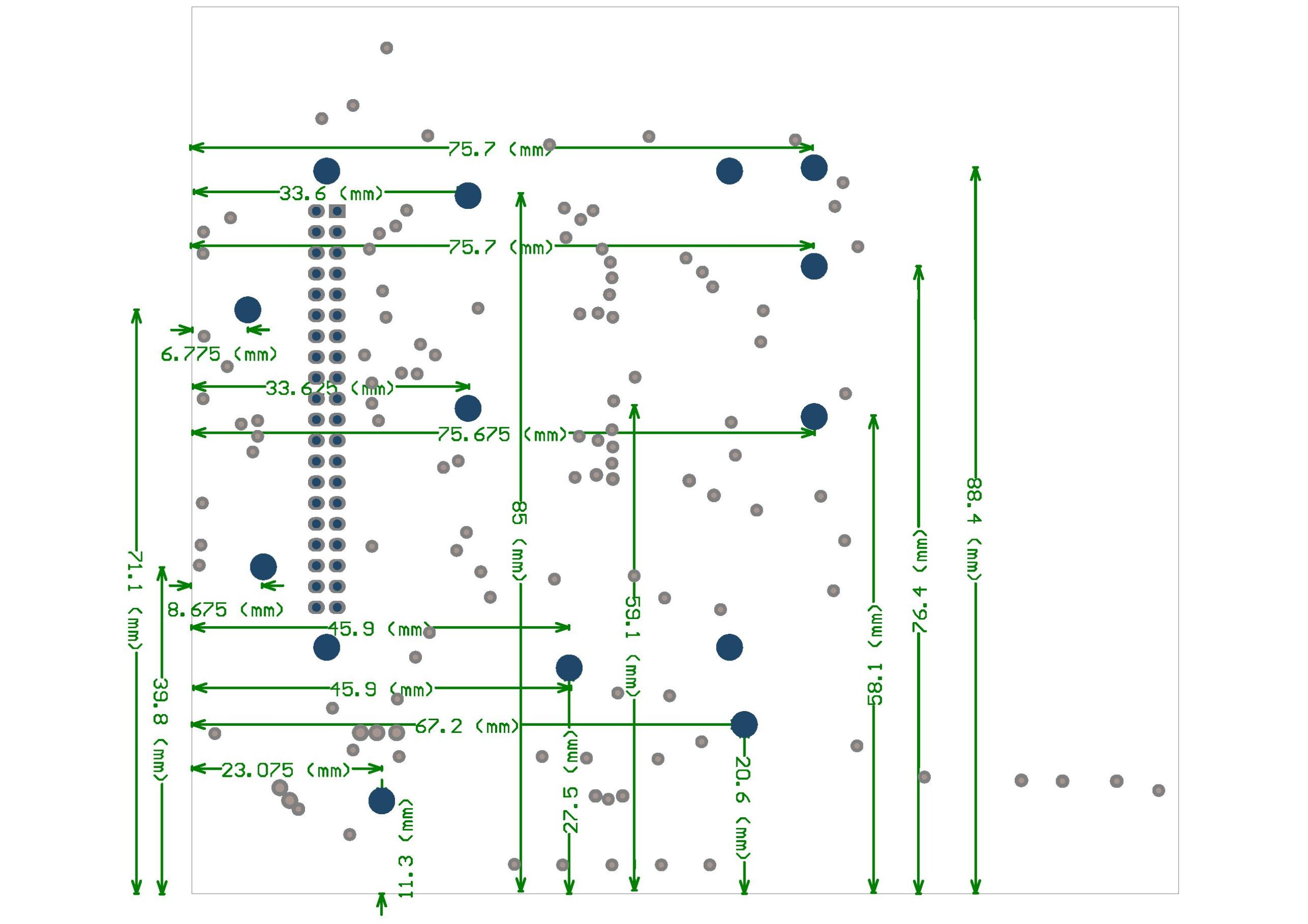

  • PCB dimension: 120mm x 108mm
  • Board’s pinout: EBRPIH1118
  • Python  package
